Description

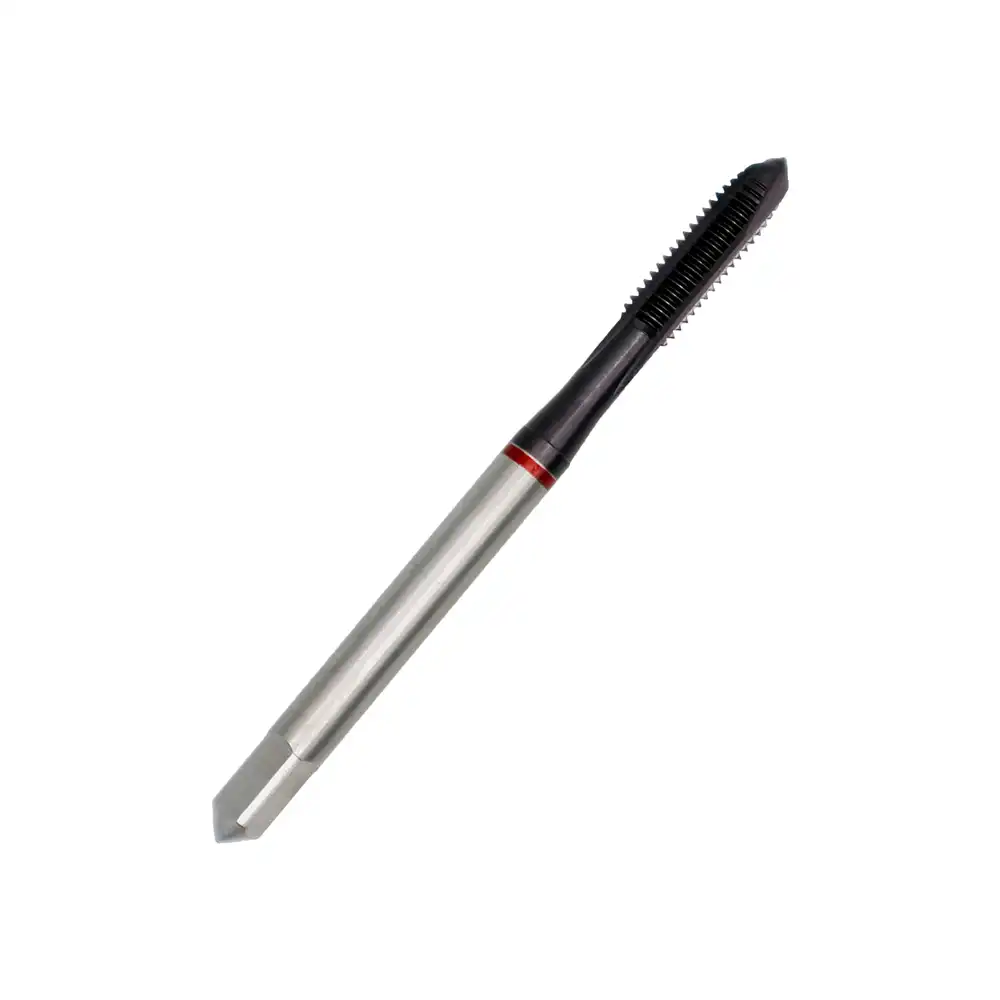

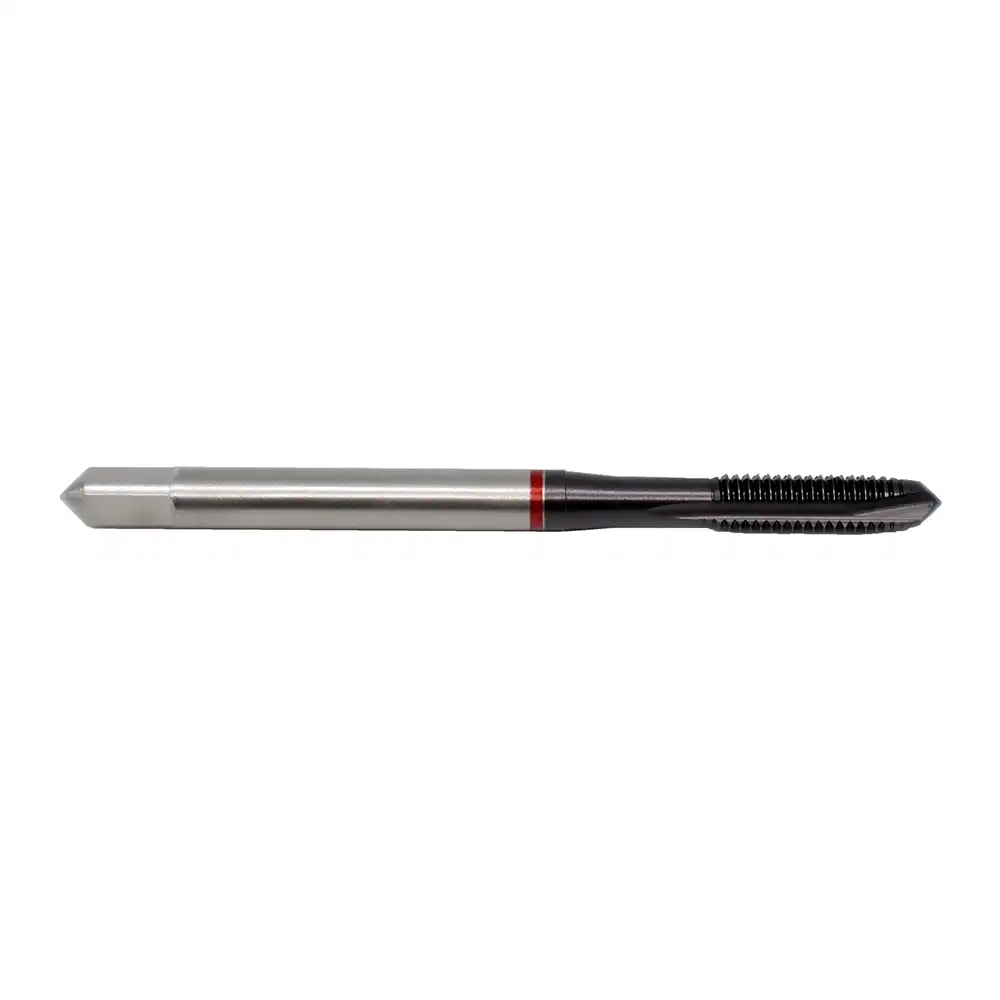

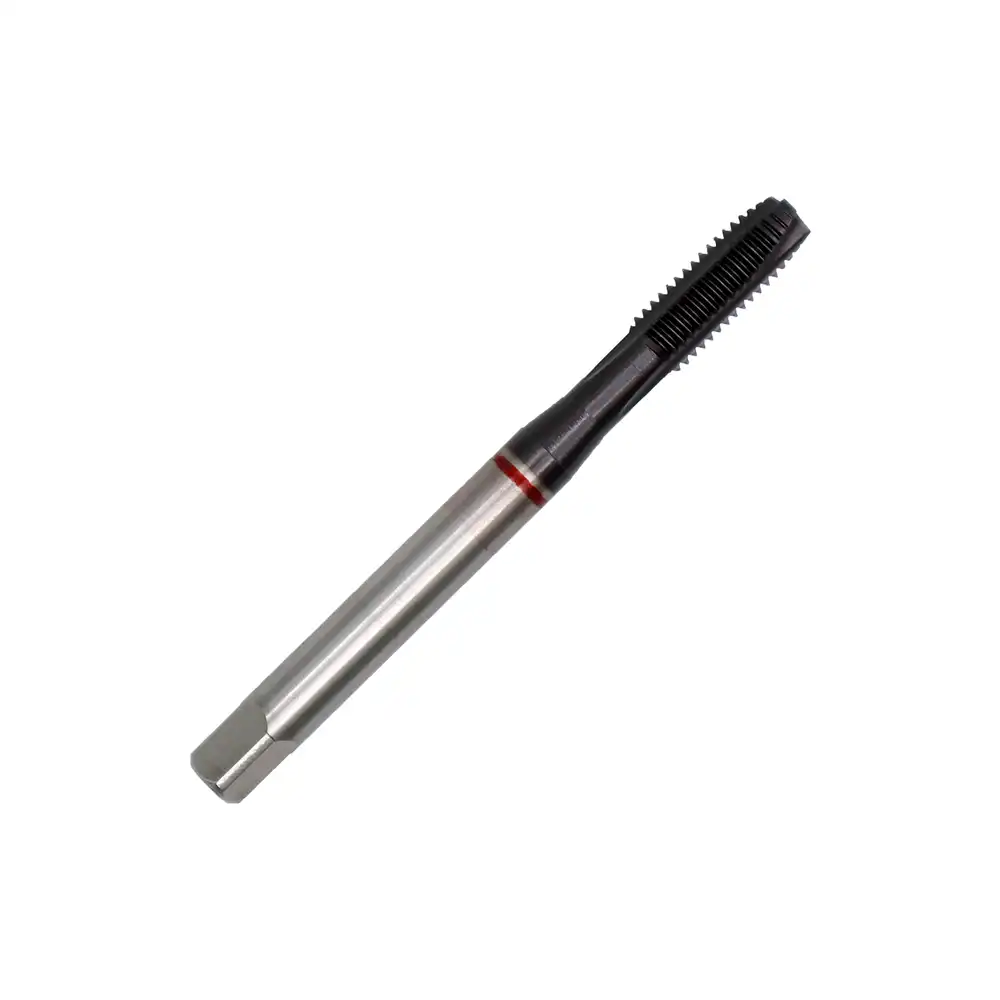

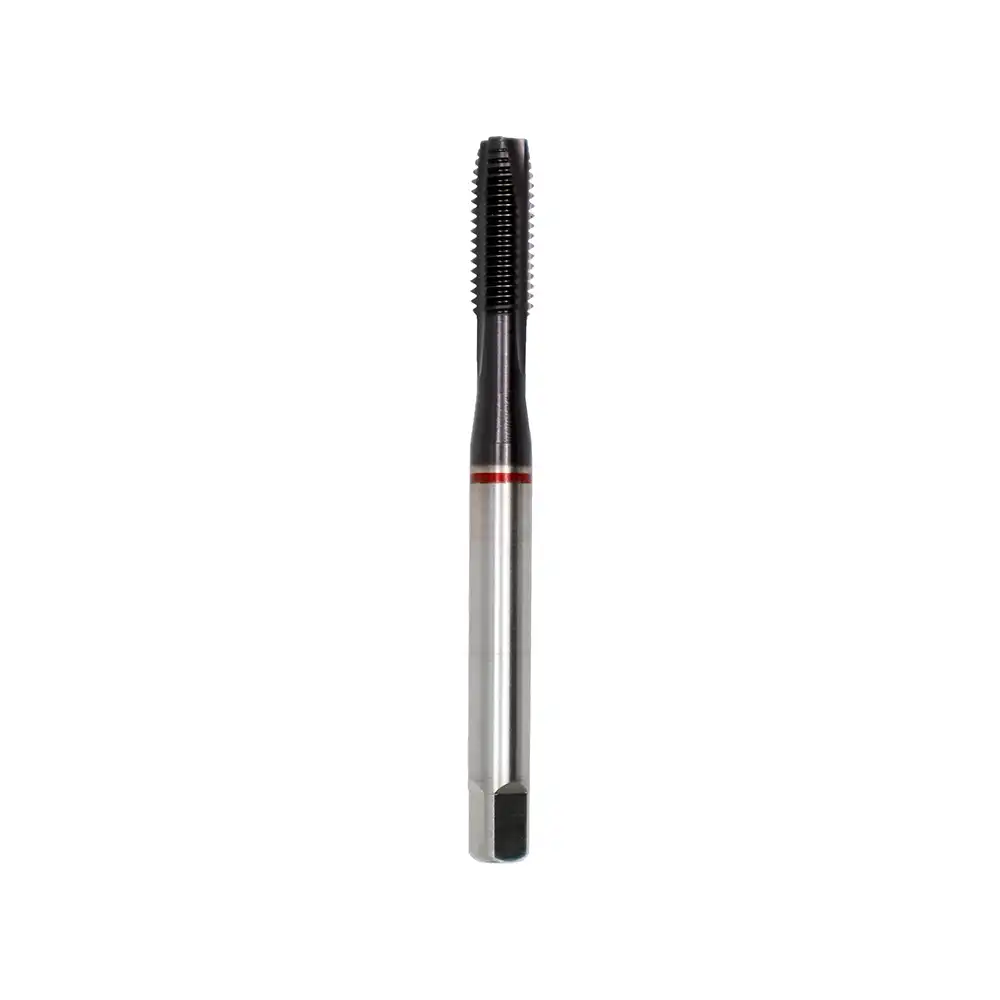

This HSSE machine tap is designed for efficient and accurate threading of through holes in tough materials. Conforming to DIN371 standards, it features a high-performance TiCN (Titanium Carbonitride) coating that delivers superior wear resistance, extended tool life, and excellent heat protection. Made from high-speed steel with added cobalt (HSSE), it ensures optimal hardness and performance in demanding machining tasks.
Specifications:
Material: High-Speed Steel with Cobalt (HSSE)
Coating: TiCN (Titanium Carbonitride)
Standard: DIN371
Application: Through Hole
Flute Type: Spiral Point (Gun Nose)
Size Range: M3–M20 (custom sizes available)
Thread Type: Metric
HSSE TiCN Machine Tap DIN371 for Through Holes – Precision Thread Cutting
Features:
TiCN coating increases hardness and heat resistance

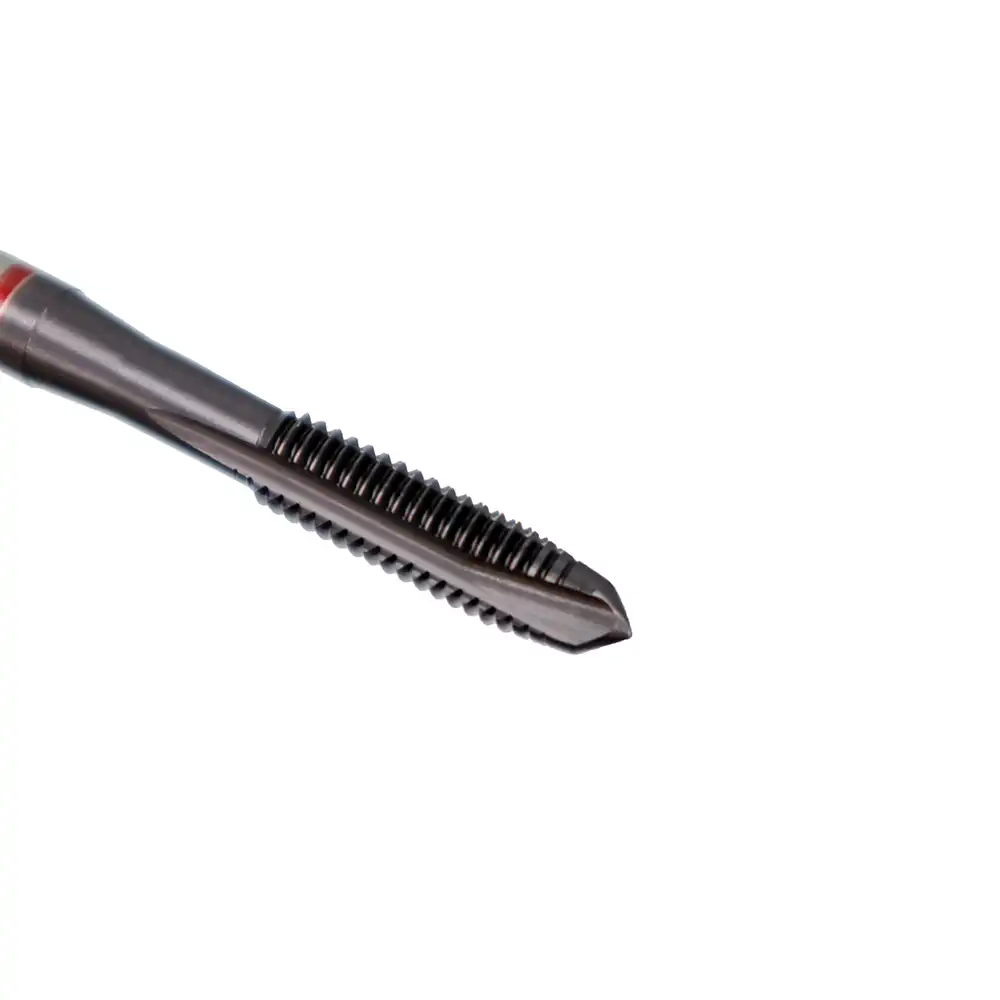

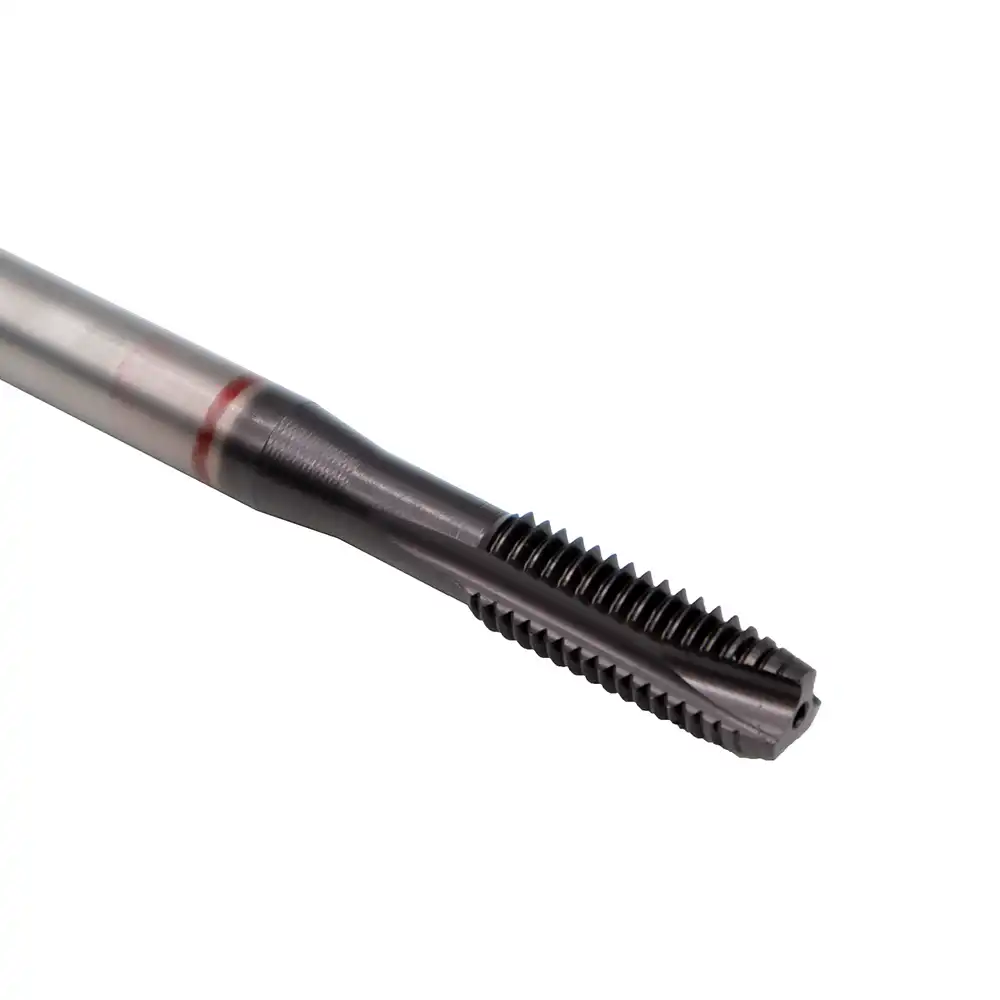

Spiral point design pushes chips forward—ideal for through holes
HSSE material ensures strength and long tool life
Conforms to DIN371 for short machine tap profile
Excellent chip evacuation and reduced thread damage
